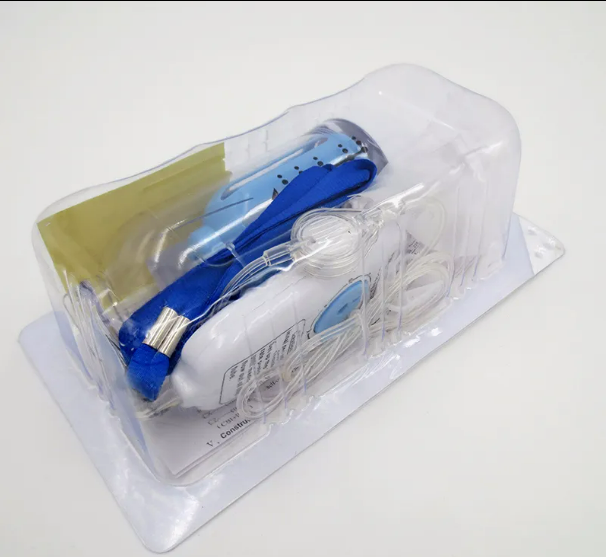

Product name: Infusion pump for single use

Product model: CBI, CBI+PCA

Model:

Filling Volume = 100mL, 150mL, 200mL, 275mL

Nominal flow rate = 2mL/h, 3mL/L, 4mL/h, 5mL/L

Automatic liquid supply volume =  0.5mL/times

Automatic liquid feeding and refilling time = 15 min

Product scope of application: This product is suitable for continuous injection of liquid medicine in clinical micro administration treatment.

Product structure composition: It consists of a dosing port three-way, protective cap,  protective bottle, liquid reservoir, and liquid medicine filter (5μm), flow limiting device, automatic control liquid feeding device (PCA), tubing, flow stop clamp and outer cone connector. The product is sterilized by ethylene oxide.
